FARM-CO2 Screening

Uploaded by operator team · 2026-09-22 14:08 · 4.7 MB · geometry parsed, centroids and area computed, state assigned from IBGE boundaries

Parsed properties

One row per KMZ. Area is computed from the polygon, not from the file name. Rows flagged here are carried into Gate 0 as clarification items. Click a row to open it in the handoff view.

ID	Property	State	Area (ha)	Centroid	Geometry	Note

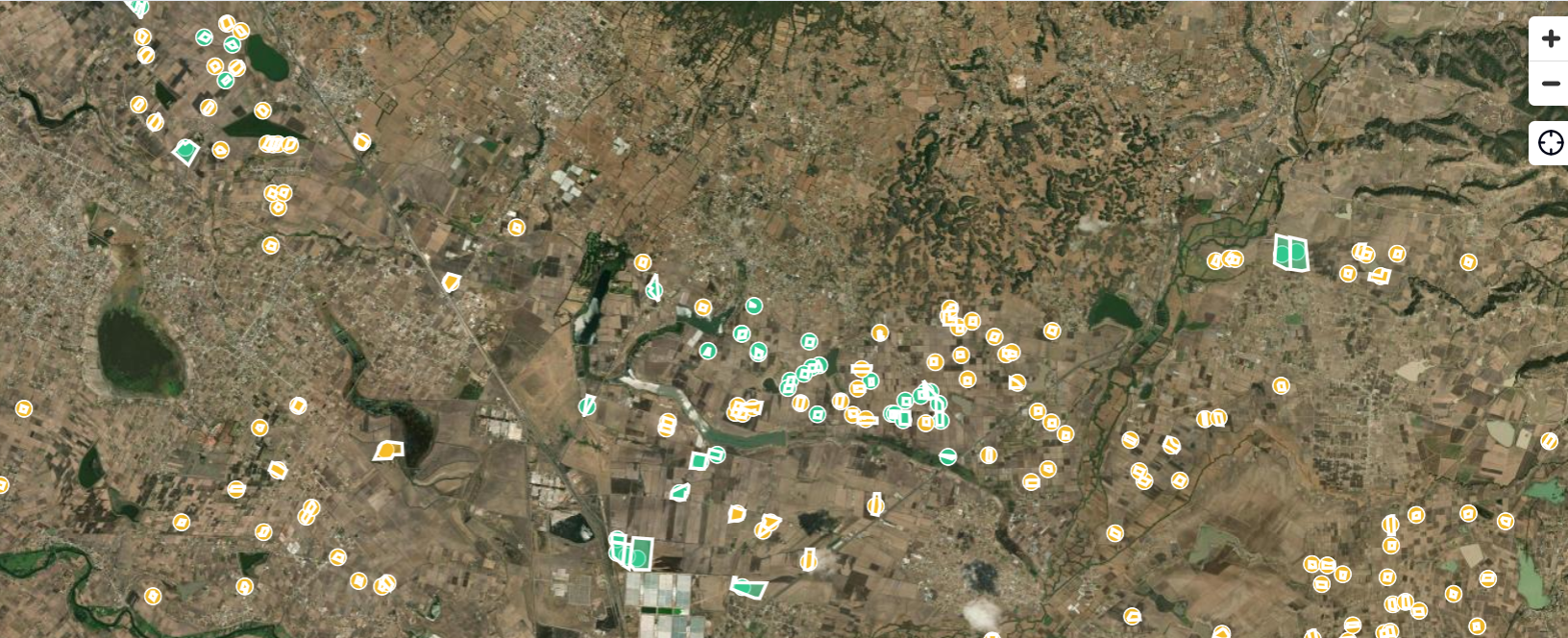

All parsed property centroids on satellite imagery

TEAM

What intake checks

Automatic, before any human review.

Continue to validation

Gate 0 · Intake validation›Is the package consistent and usable?›Complete moves to Gate 1 · Clarification needed goes back to the operator and is re-screened

Package checklist by property

Six evidence items per property. A property is complete when every item is present and consistent with the KMZ boundary.

ID	Property	Boundary	CAR	Registries	Embargo	Photos	Certificates	Outcome

Clarification requests

Sent to the operator team. Re-screened on receipt.

Consistency rules

✓CAR polygon overlaps KMZ boundary ≥ 90 %SICAR

✓Matrícula area within ± 10 % of polygon areaCartório

✓No active embargo on the CAR or the CPF/CNPJIBAMA · SEMA

✓Georeferenced photos dated within 12 monthsEXIF

✓Certificates (CCIR, ITR, negative debt) currentINCRA · RFB

Back Continue to PCV restrictions

Gate 1 · PCV absolute restrictions›Any hit is a hard stop›Pass moves to Gate 2 · Absolute restriction is Do not advance, with reason and evidence recorded

Restriction screen by property

Each class is checked against the polygon, not the centroid. A hit shows the source layer and the overlap it found.

ID	Property	Human rights	Deforestation cut-off	Protected territories	Outcome	Evidence

Absolute restrictions

Rule set: PCV v2 · applied 2026-09-26

×Human rights · employer on the labour "lista suja", or land conflict registeredMTE · CPT

×Deforestation cut-off · any clearing after 2020-12-31 (EUDR) or after 2008-07-22 (Amazon Soy Moratorium)PRODES · MapBiomas

×Protected territories · overlap with conservation unit, indigenous land or quilomboICMBio · FUNAI · INCRA

Restriction class that stopped each property.

Back Continue to agroclimatic fit

Gate 2 · Agroclimatic fit›Cacao · Restore / Bastide criteria›Each indicator scored Optimal · Tolerable · Critical · a binding Critical is Do not advance; a Tolerable with a resolvable cause is Further information

Indicator matrix

Crop model cacao:restore_bastide_v1 · thresholds are the client's and editable under Crop models.

OptimalTolerableCritical

ID	Property	Precipitation	Dry season	Water deficit	Soil	Depth	Slope	Road access	Outcome

Thresholds in force

Restore / Bastide cacao criteria, as loaded. Tolerable bands are where the operator's mitigation (irrigation, shade design) decides.

Indicator	Optimal	Tolerable	Critical	Source
Annual precipitation	1,500–2,500 mm	1,250–1,500 · 2,500–3,000	< 1,250 · > 3,000	ERA5-Land · CHIRPS
Dry-season duration	≤ 3 months	3–4.5 months	> 4.5 months	ERA5-Land
Water deficit	≤ 100 mm	100–200 mm	> 200 mm	Thornthwaite balance
Soil class / texture	Latossolo · Argissolo, loam–clay	Neossolo, sandy-loam	Gleissolo · sand	SiBCS · SoilGrids
Effective depth	> 100 cm	60–100 cm	< 60 cm	SoilGrids
Slope	< 8 %	8–20 %	> 20 %	SRTM 30 m
Road access	≤ 25 km paved	25–60 km	> 60 km	OSM · DNIT

What bound the Tolerables

NOTE

Back Continue to handoff

Batch 01
